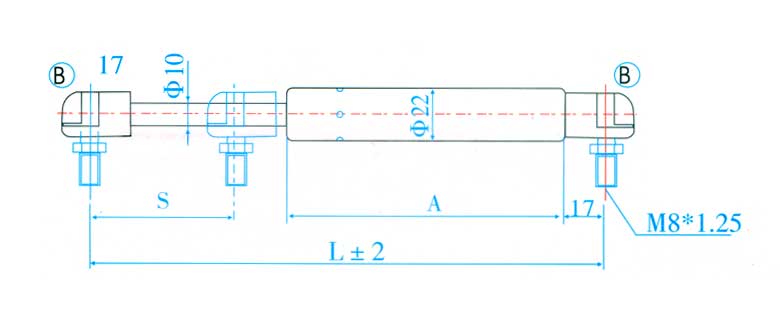

Compression Gas Spring -- Series 5 (10/22)

MODEL# S A L FORCE (N) SY-060-115 60 115 209 150N-850N SY-080-135 80 135 249 150N-850N SY-100-155 100 155 289 150N-850N SY-120-175 120 175 329 150N-850N SY-140-195 140 195 409 150N-850N SY-160-215 160 215 449 150N-850N SY-180-235 180 235 455 150N-850N SY-200-255 200 255 489 150N-850N SY-220-275 220 275 529 150N-850N SY-240-295 240 295 589 150N-850N SY-260-315 260 315 629 150N-850N L:EXTENDED LENGTH                       S:STROKE LENGTH                      A:BODY LENGTH F:LIFT FORCE                             kgf=9.8N Piston rod: |ŚĚ10                                     Cylinder: |ŚĚ22 This table shows the standard sizes,we can also customize the gas spring as per your special requirements Max.stroke can be 600mm     (Unit:mm)
