Parameter of Compression Gas Spring

Compression Gas Spring
Parameter of Compression Gas Spring
Products Picture of Compression Gas Spring
Gas Spring for Cabinet
Gas Spring for Automotive


6/15 8/18 10/22 14/28
Series 1 | Series 2 | Series 3 | Series 4 | Series 5 | Series 6 | Series 7 | Series 8

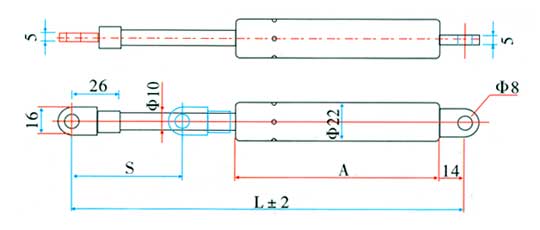

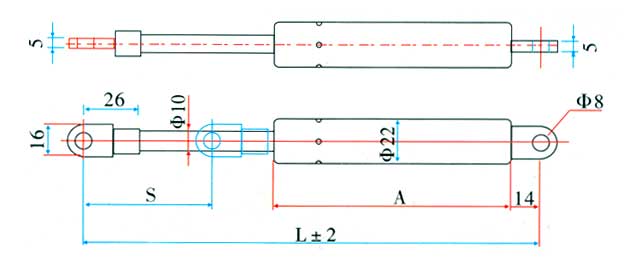

Compression Gas Spring -- Series 7 (10/22)

MODEL# S A L FORCE (N) SY-060-115 60 115 215 150N-850N SY-080-135 80 135 255 150N-850N SY-100-155 100 155 295 150N-850N SY-120-175 120 175 335 150N-850N SY-140-195 140 195 375 150N-850N SY-160-215 160 215 415 150N-850N SY-180-235 180 235 455 150N-850N SY-200-255 200 255 495 150N-850N SY-215-270 215 270 525 150N-850N SY-220-275 220 275 535 150N-850N SY-240-295 240 295 595 150N-850N SY-260-315 260 315 635 150N-850N L:EXTENDED LENGTH                       S:STROKE LENGTH                      A:BODY LENGTH F:LIFT FORCE                             kgf=9.8N Piston rod: |ŚĚ10                                    Cylinder: |ŚĚ22 This table shows the standard sizes,we can also customize the gas spring as per your special requirements Max.stroke can be 600mm     (Unit:mm)

MORE GAS SPRING >>
