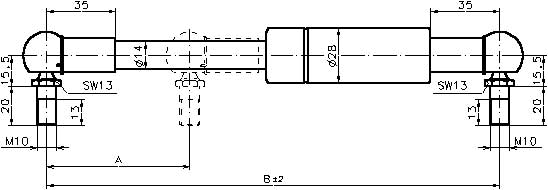

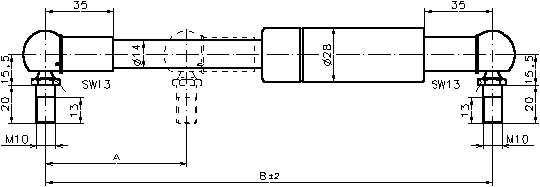

Compression Gas Spring -- Series 8 (14/28)

MODEL# A B FORCE (N) SY-100-300.50 100 300.50 1000N-2500N SY-150-400.50 150 400.50 1000N-2500N SY-200-500.50 200 500.50 1000N-2500N SY-250-600.50 250 600.50 1000N-2500N SY-300-700.50 300 700.50 1000N-2500N SY-350-800.50 350 800.50 1000N-2500N SY-400-900.50 400 900.50 1000N-2500N SY-500-1100.50 500 1100.50 1000N-2500N L:EXTENDED LENGTH                       S:STROKE LENGTH                      A:BODY LENGTH F:LIFT FORCE                             kgf=9.8N Piston rod: |ŚĚ14                                     Cylinder: |ŚĚ28 This table shows the standard sizes,we can also customize the gas spring as per your special requirements Max.stroke can be 600mm     (Unit:mm)
